Channel Overview



When created, all channels will be stereo, yet the user can configure it to be mono or auxiliary receiver at any time (channel "Utilities" menu).

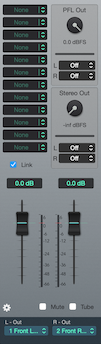

Desk Channel

Utilities

The Utilities menu gives access to the channel properties setup: stereo/mono selector, aux receiver settings and channel color;

It also includes a few other tools: a signal generator (white Noise, Sine Wave and Square Wave), a DC removal filter and a delay unit;

Note: The delay tool may be used to compensate for delays caused by AudioUnits.

Audio Units

There is 12 Audio Units inserts available for each channel.

To see all AU slots available press the "+" button next to the "Aux Send" menu.

To Bypass an Audio Unit without opening the insert window, do Command and Mouse Click over the plugin name. To open the insert window press the plugin name; To insert a new plugin click on the arrows next to the name and select one of the available options.

Aux Send

The "Aux Send" menu gives access to the auxiliary send options. Aux Sends, can be either pre or post fader/pan (for A B pairs). When the channel is set to Stereo, the A B pair represent the Left and Right channels.

I/O Delay

The I/O Delay, displays the total delay introduced by the channel processing (including Audio Units).
